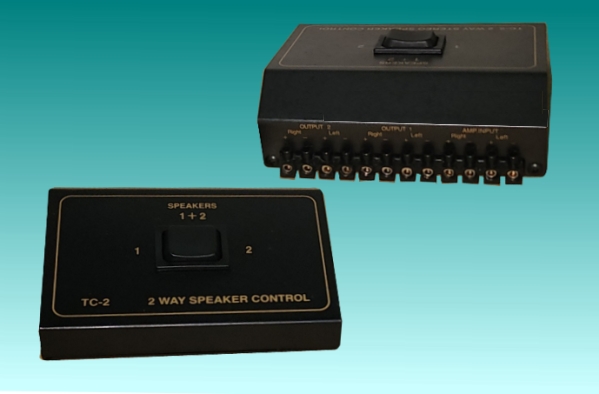

TC-2 2-Way Loudspeaker Control

Designed to enable 2 pairs of stereo loudspeakers to be connected to Hi-Fi power Amplifier
and make it possible of listen to either pair of loudspeakers in separate or all together.

Features
 Suitable for speaker from 4 ohms to 16 ohms.
 Simple connection uses screw terminals for both inputs and outputs.
 Stylish strong metal box

NOTE:

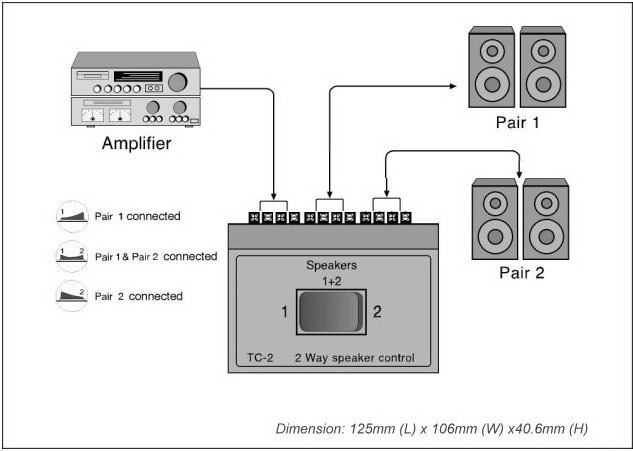

Switch to position 1 the load to Amplifier is  8 ohms, Switch to position 2 the load to
Amplifier is 8 ohms
Switch to middle (1+2), The two speaker pairs are serially connected. In this design, the
load impedance is 16 ohms when both pairs are switched on which will not overload the
amplifier.
