  • TC-22 2 Way loudspeaker control

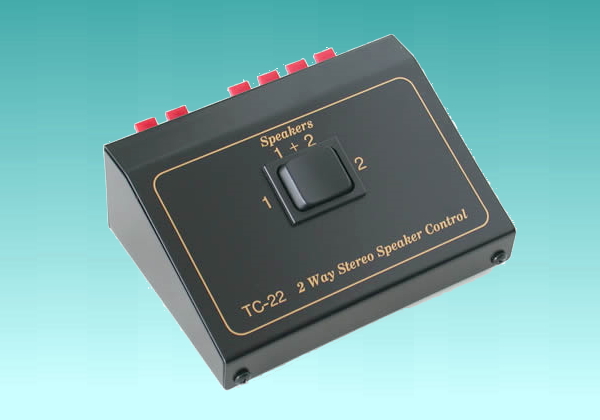

    TC-22 2 Way loudspeaker control

    Designed to enable 2 pairs of stereo loudspeakers to be connected to Hi-Fi power Amplifier and make it possible of listen to
    either pair of loudspeakers in separate or all together.


    Features:

    ․Suitable for speaker from 4 ohms to 16 ohms.
    ․Simple connection snap in push screw terminals.
    ․Stylish strong metal box.

    　

    Note:
    With two 8 ohms speakers connected to TC-22, switched to position 1 or 2, the load presented to amplifier is 8 ohms, switched
    to middle (1+2) will make the two pairs connected serially and the load to amplifier is 16 ohms thus when both pairs are playing
    which will not overload the amplifier.

    　

    Packing

    Weight

    Export carton

    N.W

    G.W

    Dimension

     Blister

    390 gm

    30pcs

    12 kg

    13.5kgs

    1.8'
